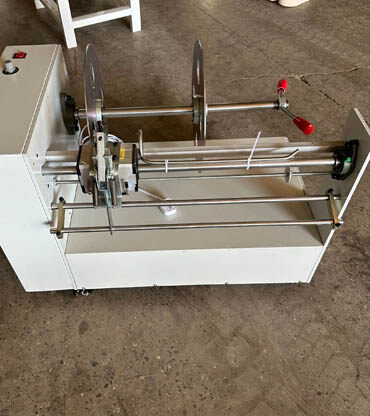

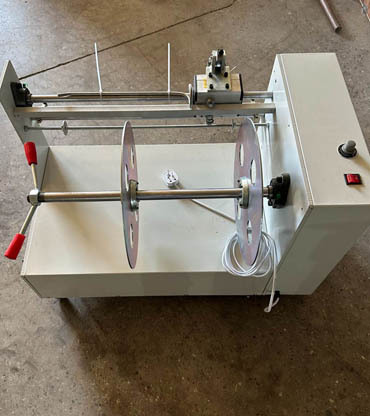

A trim winders machine are designed to provide high speed, compact, efficient removal of trim from converting lines for Plastic PP, PS, Pet,PVC cling, PVC stretch etc without the noise, dust and high cost of installation associated with many vacuum systems. Rewinding machine is designed It is servomotor driven. It has film length control and converting speed control. Touch panel assures full control of converting process.
This type of compact, simple and robust trim rewinding equipment adopts advanced technique ,it is very convenient to run, reliable, cost effective and just need one operator to carry out all the daily measurements,it also enables you to manage trims efficiently and effectively for improved profitability.
This is Automatic Trim Winder Rewinder machine is used for wind & unwind laminated rolls, paper rolls etc with high speed, efficiency and accuracy ,it is great to meet the demands of diverse industries’ needs, from paper to cordage manufacturing.
With focus on innovation and quality, our range of winding machine ensure optimal performance and operation. They are ideal for packaging, packaging, plastic and clothes industries, the Trim Winder Machine is c, and calls for minimum maintenance after longer performance.
Main Structure
*
Frame: Welded steel construction with excellent rigidity and stability
*
Upper Knife Beam :a triangle steel-sheet welded structure with guiding rail plate ,bade and back-guage device .
*
Cylinders Device : Including two piston cylinders and sealing components on the left and right, they directly drives the movement of upper knife beam .
*
Hydraulic System : It is the driving system of the rubber bale cutter machine , mainly composed of main motor ,oil pump ,valve ,oil tank ,pipings etc .
*
Blade Gap Adjustment : The gap can be adjusted according to the plate thickness, this device consist of adjustment handle ,lever ,dial etc
*
Electric System: The electric system is installed on the left support pillar ,which is convenient to operate and control for this rubber cutting machine .
Key Features of a Hydraulic Guillotine Bale Cutter
* Hydraulic Power and High Precision:
Hydraulic guillotines utilize the power of hydraulic power to cut material precisely and efficiently, even for thick and tough materials, such as metal etc. The hydraulic system ensures uniform pressure distribution along the length of the blade, resulting in clean, burr-free edges.
* Versatility & Multi Function:
Hydraulic guillotines cutting machine are capable of cutting a wide range of materials, including all kinds of rubber ,plastic,EVA ,silicone ,even for hard material like metal alloy ,stainless steel, aluminium, brass etc. Its blade can be setted according to material thickness and cutting requirements by way of adjusting its clearance and cutting angle settings.
*Hydraulic System: delivering clean and uniform cuts for various production demands due to its powerful cutting force. Additionally, this makes them suitable for working with tough and thick materials. Some of the best know in recycling industry are a roll splitter or a bale cutter.
* Safety of a Hydraulic Guillotine:
This hydraulic guillotine bale cutter equipment are equipped with advanced safety guard,which protect the safety of operators from any accidents.
* Durability and Reliability:
This hydraulic guillotines bale cutter are designed to withstand the rigours of continuous industrial use,it is constructed with robust steel frames and high-quality components. Definately regular maintenance and servicing would surely prolong its lifespan of guillotine cutting machine and ensure its optimal performance.
Specification
| MODEL |
Ordinary motor + reciprocating screw shaft |
Ordinary motor + no paper tube |
Torque motor + optical axis |
Torque motor + pneumatic shaft / manual shaft (pneumatic shaft can not be with baffle) |
Torque motor + double pneumatic shaft |
| SINGLE HEAD / DOUBLE HEAD |
Single head |
Single head |
Single head |
Single head |
Double head |
| SHAFT LENGTH |
500 mm |
500 mm |
500 mm |
500 mm |
500 mm |
| TRAVERSE UNIT |
Reciprocating Screws |
Reciprocating Screws |
rolling ring traverse |
rolling ring traverse |
rolling ring traverse |
| MAX WINDING DIAMETER |
300 mm |
300 mm |
500 mm |
500 mm with baffle |
350 mm with baffle |
| NEED CARDBOARD CORE |
Need |
No need, tensioning device, maximum 130MM, minimum 100MM |
Need |
No need, pneumatic shaft or handbook shaft |
No need |
| TORQUE MOTOR |
Not |
Not |
Yes |
Yes |
Yes |
| VOLTAGE |
220V 50Hz |
220V 50Hz |
Three-phase 380V 50Hz |
Single-phase 220V 50Hz / Three-phase 380V 50Hz |
Single-phase 220V 50Hz /Three-phase 380V 50Hz |
| POWER |
six-stage motor/400W DC motor |
300W six-stage motor/401W DC motor |
DC Motor 750W + Torque Controller / Torque Motor, 5 Nm |
DC Motor 750W + Torque Controller / Torque Motor, 6 Nm |
DC motor 500W + torque controller / torque motor, 3 Nm |
| OUTPUT TORQUE |
220V 50Hz |
220V 50Hz |
Torque Motor, 5 Nm |
220V 50Hz /Torque Motor, 5 Nm |
220V 50Hz /Torque Motor, 3 Nm |
| SPEED |
MAX 80 m/min |
0-80m/min |
0-100m/min |
0-100m/min |
0-150m/min |
| SIZE |
900*500*500mm |
900*500*500 |
950*550*650mm |
650*550*950mm |
500*500*1050mm |
| WEIGHT |
55kg |
55kg |
110KG |
110kg |
300kg |
Optional Feature
* Winding of 2 trims on one winder
* Rewind cheek plates (flanges) for slippery films
* Pull roll for constant pull during roll change
* Coreless winding to minimise waste
* Low tack roll coverings for exposed adhesives
Suitable for Materials
This Trim Winder machine is designed for winding mainly woven multiaxial mats made of such materials as glass, aramid, carbon fibres ,it is also applicable for other material ,including:
* Fabric
* Felt
* Fiberglass
* PVC/PE/PP Film
* Foil
Paper &Tissue and Wallpaper
* Prepreg
* Pressure Sensitive Vinyl
* Rubber
* Plastic & Plastic bags
* Giftwrap
* Nonwovens
* Filtration
* Labels & Tape
* Medical materials
Request A Quote
