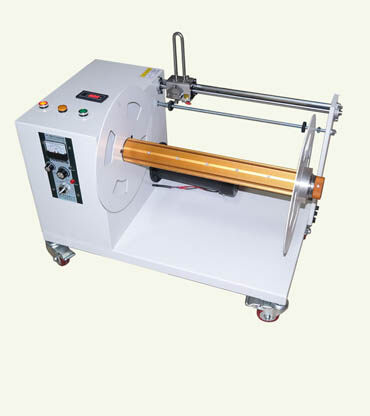

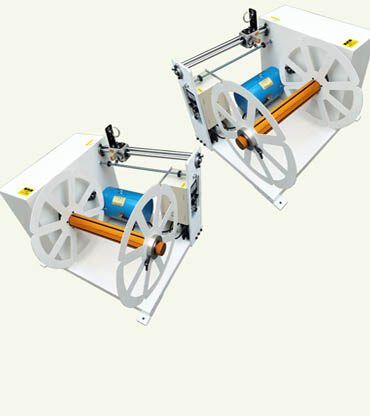

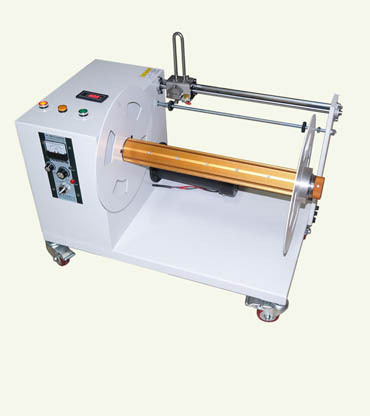

This automatic trim winders machine is also known as film take up machine orWaste Material Take-up winder ,it a device used to wind, spool, or collect edge trim material. The rewinder splitting machine provide an effective and efficient means of edge trim winding of almost any type of material into a spool ,ideal for plastic pp, ps, pet, pvc film , foil, non-woven, paper, or other web materials ,it is also suitable for take up the waste materials produced in the production of film, strip, monofilament wallpaper and coated wire. Such automatic trim winders machine features for high reliability of trim winding. It's an valuable concept to add the value by rewinding and processing the trim produced by converting machines, like slitting, Extrusion, pouch making and many more Our automatic rewinder device feature the characteristics of easy operation, smooth transmission, high quality and efficiency of edge folding, it is an ideal special equipment for take up series. These automatic trim winder machines are mainly used to work together with the blowers, making use of the same duct line, with a smart detection system that signals the blower to take over a trim breakage is expected, reducing downtime and damage due to trim breakage. With focus on innovation and quality, our range of winding machine ensure optimal performance and operation. They are ideal for packaging, packaging, plastic and clothes industries, the Trim Winder Machine is c, and calls for minimum maintenance after longer performance.

Specification

MODEL	Ordinary motor + reciprocating screw shaft	Ordinary motor + no paper tube	Torque motor + optical axis	Torque motor + pneumatic shaft / manual shaft (pneumatic shaft can not be with baffle)	Torque motor + double pneumatic shaft
SINGLE HEAD / DOUBLE HEAD	Single head	Single head	Single head	Single head	Double head
SHAFT LENGTH	500 mm	500 mm	500 mm	500 mm	500 mm
TRAVERSE UNIT	Reciprocating Screws	Reciprocating Screws	rolling ring traverse	rolling ring traverse	rolling ring traverse
MAX WINDING DIAMETER	300 mm	300 mm	500 mm	500 mm with baffle	350 mm with baffle
NEED CARDBOARD CORE	Need	No need, tensioning device, maximum 130MM, minimum 100MM	Need	No need, pneumatic shaft or handbook shaft	No need
TORQUE MOTOR	Not	Not	Yes	Yes	Yes
VOLTAGE	220V 50Hz	220V 50Hz	Three-phase 380V 50Hz	Single-phase 220V 50Hz / Three-phase 380V 50Hz	Single-phase 220V 50Hz /Three-phase 380V 50Hz
POWER	six-stage motor/400W DC motor	300W six-stage motor/401W DC motor	DC Motor 750W + Torque Controller / Torque Motor, 5 Nm	DC Motor 750W + Torque Controller / Torque Motor, 6 Nm	DC motor 500W + torque controller / torque motor, 3 Nm
OUTPUT TORQUE	220V 50Hz	220V 50Hz	Torque Motor, 5 Nm	220V 50Hz /Torque Motor, 5 Nm	220V 50Hz /Torque Motor, 3 Nm
SPEED	MAX 80 m/min	0-80m/min	0-100m/min	0-100m/min	0-150m/min
SIZE	900*500*500mm	900*500*500	950*550*650mm	650*550*950mm	500*500*1050mm
WEIGHT	55kg	55kg	110KG	110kg	300kg

Optional Feature

* Winding of 2 trims on one winder * Rewind cheek plates (flanges) for slippery films * Pull roll for constant pull during roll change * Coreless winding to minimise waste * Low tack roll coverings for exposed adhesives

Suitable for Materials

This Trim Winder machine is designed for winding mainly woven multiaxial mats made of such materials as glass, aramid, carbon fibres ,it is also applicable for other material ,including: * Fabric * Felt * Fiberglass * PVC/PE/PP Film * Foil Paper &Tissue and Wallpaper * Prepreg * Pressure Sensitive Vinyl * Rubber * Plastic & Plastic bags * Giftwrap * Nonwovens * Filtration * Labels & Tape * Medical materials

Types of Converted Materials
